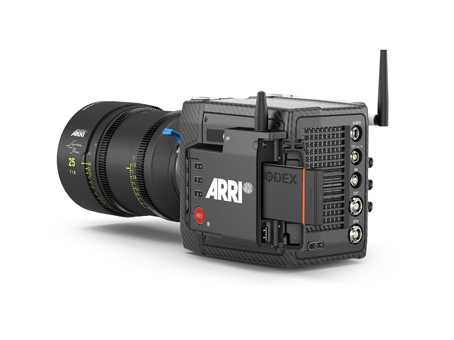

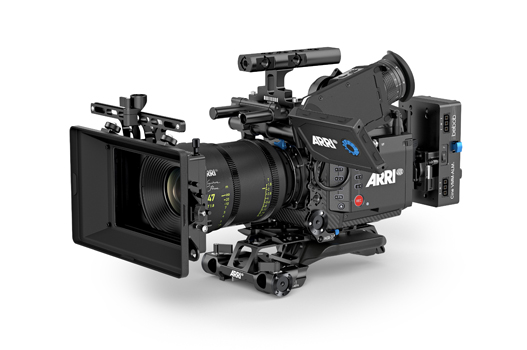

CODEX + ALEXA MINI


The ALEXA Mini combines a compact, lightweight form factor with the ALEXA’s renowned image quality. To achieve the small size whilst maintaining the quality that the ALEXA is known for, ARRI has come up with some unique solutions including a lightweight carbon housing and a solid titanium PL mount. The ALEXA Mini has a 4:3 sensor and an automatic de-squeeze mode for anamorphic productions. It can shoot at frame rates of 0.75 - 200 fps.

The ALEXA Mini records ProRes or uncompressed ARRIRAW in-camera to CFast 2.0 cards.




WORKS WITH

MacPro/MacBook Pro
S and XL-Series

DAILIES

Metadata edit
LUTs
QC

ARCHIVE

LTFS

COLOUR GRADE

CDL-based
ACES
---- Main Intro Start ----

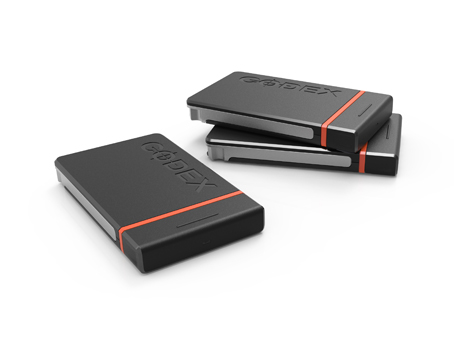

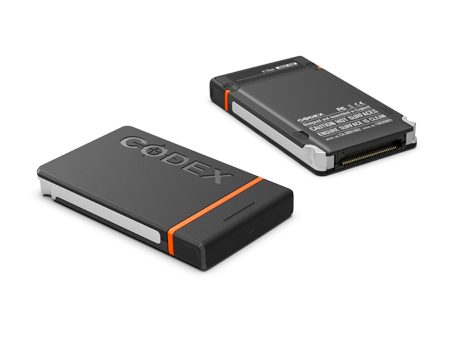

CAPTURE DRIVE™ SXR

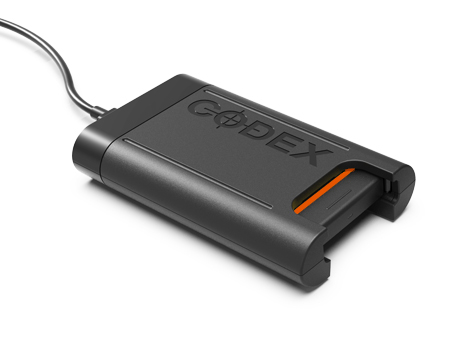

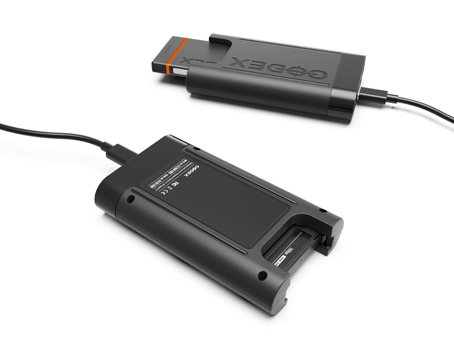

The Codex Capture Drive™ SXR meets the requirements of the new generation of digital cinematography cameras, combining ultra-high performance solid-state storage with production-reliability in a compact package. Designed around the latest PCIe-based flash storage to deliver the fastest solid-state media available for professional media applications, it feeds seamlessly into Codex’s industry standard workflows via Codex Production Suite and Codex Capture Drive™ SXR Dock.

> 1 or 2 TB of memory delivering up to 20 Gb/s bandwidth

> Engineered for high performance

> Advanced thermal design






"Our continuing relationship with Codex enables us to keep expanding the ALEXA range of cameras - raising the bar and expanding the choices that we offer cinematographers.

Stephan Shenk, Managing Director, ARRI Cine Technik




---- Tech Spec Start ----

CAMERA TECHNICAL

Technical specifications on the ALEXA Mini. Click on a title or + to reveal.

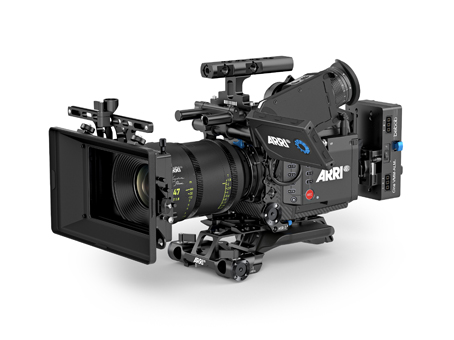

ALEXA MINI IN DETAIL
+

Camera Type
35 format film-style digital camera with lightweight and compact carbon body, 4:3/16:9 switchable active sensor area, support for ARRI MVF-1 viewfinder, built-in remote control capabilities via ARRI Wireless Remote System and Wifi, Support for cmotion cforce motors, built-in motorised ND filters, interchangable lens-mounts, Lens Data System.

Dimensions

Length: 192 mm/7.5”, width: 125mm/4.9”, height: 140mm/5.5” (camera body with PL lens mount)

Weight
~ 2.3 kg (camera body with Titanium PL lens mount)

Sensor
35 mm format ARRI ALEV III CMOS with Bayer pattern color filter array

Photo Sites
16:9
HD: 2880x1620 (3168x1772)
2K: 2868x1612 (3154x1764)
3.2K & 4K UHD: 3200x1800 (3424x1926)
4:3
2K: 2867x2150 (3168x2160) *)

Shutter

Electronic shutter, 5.0° to 356.0°

Exposure latitude

14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart
(DRTC-1)

Exposure index
EI 800 base sensitivity

Filters
Build-in motorized ND filters  0.6, 1.2, 2.1

Lens mounts
Titanium PL mount with L-Bus connector and LDS
EF mount
PL mount with Hirose connector and LDS
B4 mount with Hirose connector

Recording media

Recording formats







Recording codec

Recording Frame Rates



















Color Output

Look control

Adjustable image parameters

Focus and exposure control

White balance

Sound level

Environmental

Viewfinder

Control Interface

ARRI lens motor control


Remote control

WIFI Remote Control

Custom control

Power Input

Video Outputs

Inputs

Other Interfaces

CFast 2.0 memory cards

HD 1920x1080
2K Cine 16:9 2048x1152
2K Cine 4:3 2048x1536 *)
3.2K 3200x1800
4K UHD 3840x2160
ARRIRAW 2.8K 16:9 2880x1620 *)
ARRIRAW 2.8K 4:3 2880x2160 *)

ProRes 4444XQ, 4444, 422 (HQ), 422, 422(LT), ARRIRAW *)

16:9

HD ProRes 0.75-200 fps
HD ProRes 4444 XQ 0.75-129 fps
2K Cine ProRes 0.75-200 fps
2K Cine ProRes 4444 XQ 0.75-120 fps
3.2K ProRes 0.75-60 fps
3.2K ProRes 4444 XQ 0.75-30 fps
4K UHD ProRes 0.75-60 fps
4K UHD ProRes 4444 XQ 0.75-30 fps
2.8K ARRIRAW to CFast 2.0 0.75-30 fps *)
2.8K ARRIRAW to external CODEX recorder 0.75-120 fps *)

4:3

2K Cine ProRes 422HQ 0.75-150 fps *)
2K Cine ProRes 4444 0.75-120 fps *)
2K Cine ProRes 4444 XQ 0.75-60 fps *)
2.8K ARRIRAW to CFast 2.0 0.75-30 fps *)
2.8K ARRIRAW to external CODEX recorder 0.75-60 fps *)

Rec 709, Custom Look or LogC

Import of custom 3D LUT, ASC CDL parameter (slope, offset, power, saturation)

Knee, gamma, saturation, black gamma, saturation by hue

Peaking, zebra, false color

Manual and Auto White Balance

< 20 dB(A) at standard frame rates

-20° C to +50° C (-4° F to +122° F) @ 95% humidity max, non condensing. Splash and dust proof through sealed electronics.

Multi Viewfinder MVF-1 (OLED and LCD ) with flip out LCD screen and military grade connector to camera.

Soft buttons and OSD on SDI Output, integration of Transvideo StarliteHD touch interface *)

Build in radio interface for ARRI lens control
L-Bus motor output for daisy chainable cforce lens control motors

Wireless camera parameter adjustment with WCU-4 hand unit.

Build-in Wifi interface and web based remote control from phones, tablets and laptop.

Optional GPIO Interface for integration with custom control interfaces

Lemo 8-pin, 10.5-34 V DC

2x HD-SDI out 1.5G and 3G: uncompressed HD video with embedded audio and metadata, SDI-6G interface to external CODEX recorder *)

SDI-Genlock (optional activation through ARRI Service), timecode (in and output)

USB 2.0 (for usersets, looks etc.)
Ethernet
EXT accessory interface w. RS pin

*) may not be available at product launch and become available as a software upgrade later in 2015.

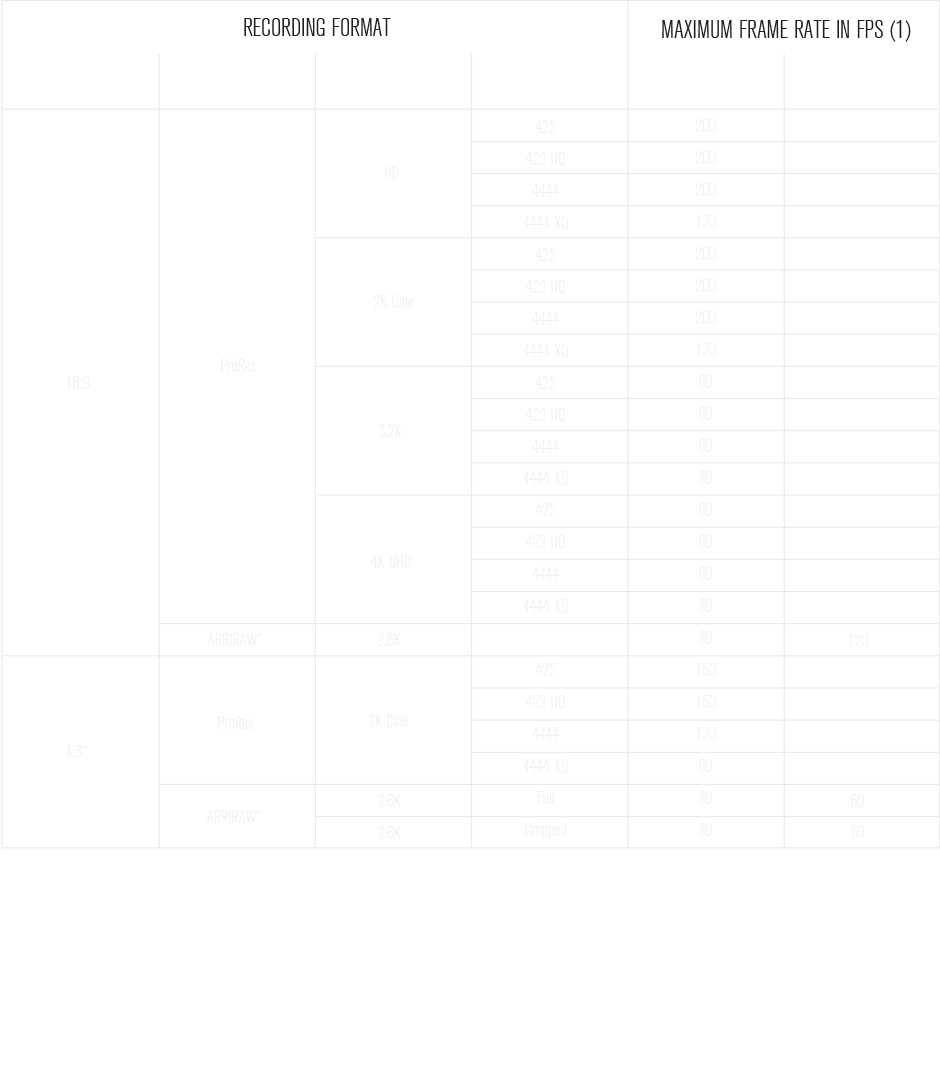

FRAME RATES WITH SUP 1.0
+
