CODEX V-RAW RECORDER
Product code: CDX-36050
Codex has partnered with Panasonic to provide reliable recording and media, plus the industry-standard Codex workflow for the 4K VariCam 35 camera.
Specifically designed for the VariCam 35, with more than enough bandwidth to handle 4K at up to 120fps, the V-RAW Recorder directly attaches to the camera, eliminating the need for cables, and records to Codex Capture Drives, the highest-performance, commercially-available media, providing the gateway to an entire, production-proven Codex workflow via Codex Production Suite.
---- Tech Spec Start ----
TECHNICAL
Codex V-RAW Recorder Specifications
| Interface | Direct Attach Module |
| Recording Media | Codex Capture Drive™ 2.0 |
| Recording Formats | 4K RAW, 4K UHDTV RAW, uncompressed 12-bit up to 30fps, 10-bit beyond 30fps up to 120fps |
| Control | Camera |
| Maximum Frame Rate | 120fps uncompressed RAW |
| Metadata | Camera metadata only |
| Input voltage | 10.5-34V DC |
| Power consumption | Maximum 40W (recorder only) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Weight | 3.3lbs (1.5Kg) |
| Dimensions (W x D x H) | 5.3 x 5.7 x 6.5in (134 x 144 x 165mm) |
| Warranty | 1 year limited warranty |
| Product Code | CDX-36050 |
IMAGE GALLERY
Click on View Gallery and browse the V-RAW Recorder

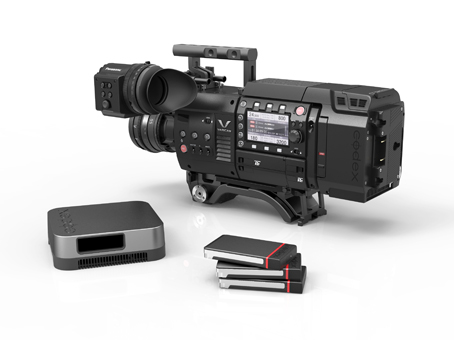

V-RAW Bundle |

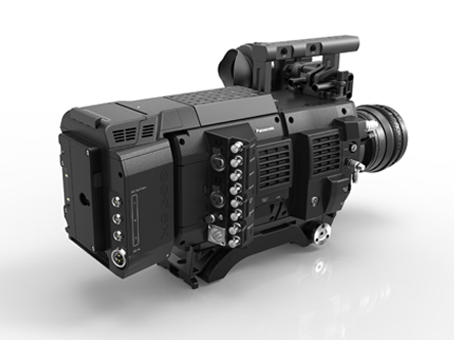

VariCam 35 with mounted V-RAW |

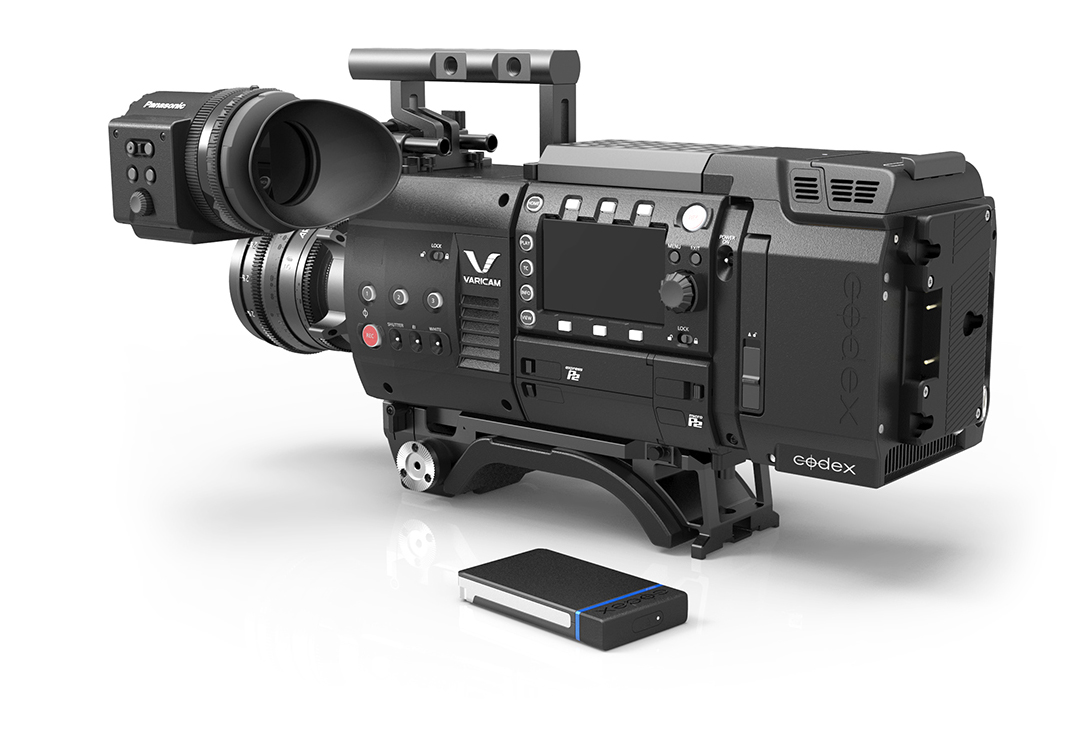

V-RAW Recorder showing Capture Drive 2.0 access |

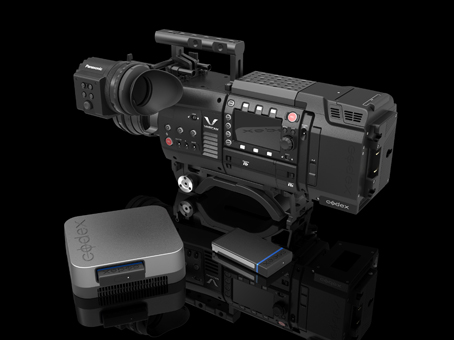

VariCam 35 with Recorder, Dock and media |

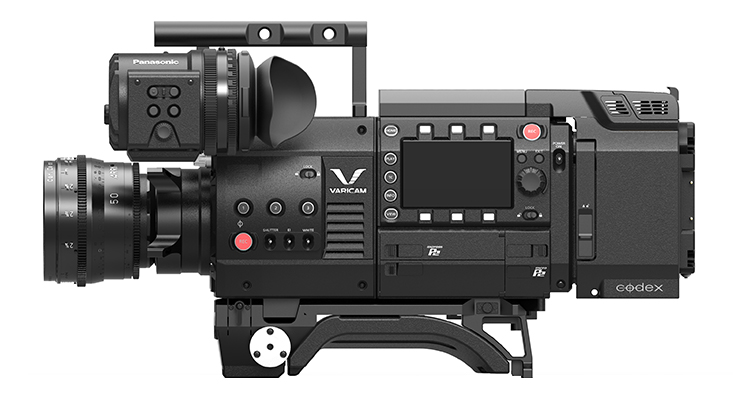

VariCam 35 side elevation |

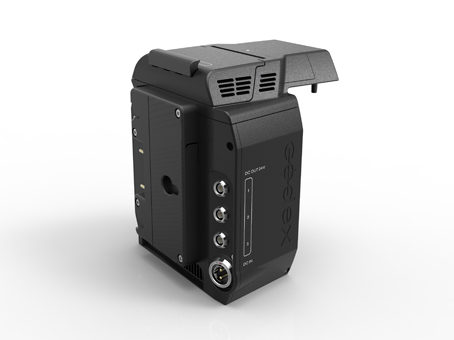

V-RAW Recorder connections |

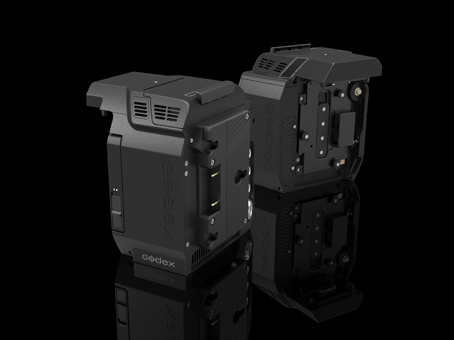

V-RAW Recorder views |

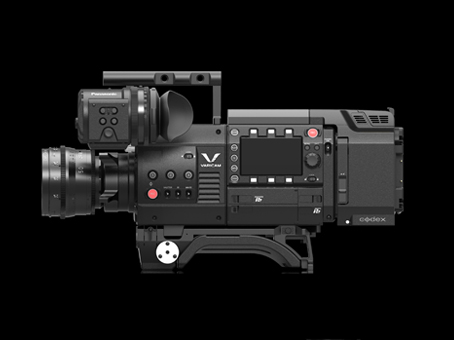

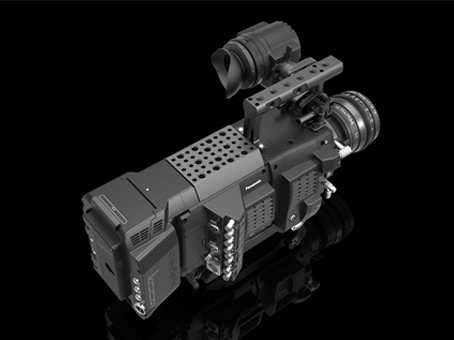

VariCam 35 with attached V-RAW |
---- Tech Spec End ----
"Codex has an impressive track record in designing and
manufacturing robust digital media recorders which also streamline the workflow on feature and broadcast productions."
Kunihiko Miyagi, Director of Panasonic’s Professional AV Business Units
CAPTURED ON CODEX
Codex is proud to support so many productions, from blockbuster Academy Award winners, to independent movies, to streaming TV. All Captured on Codex - the indispensable technology of choice.
