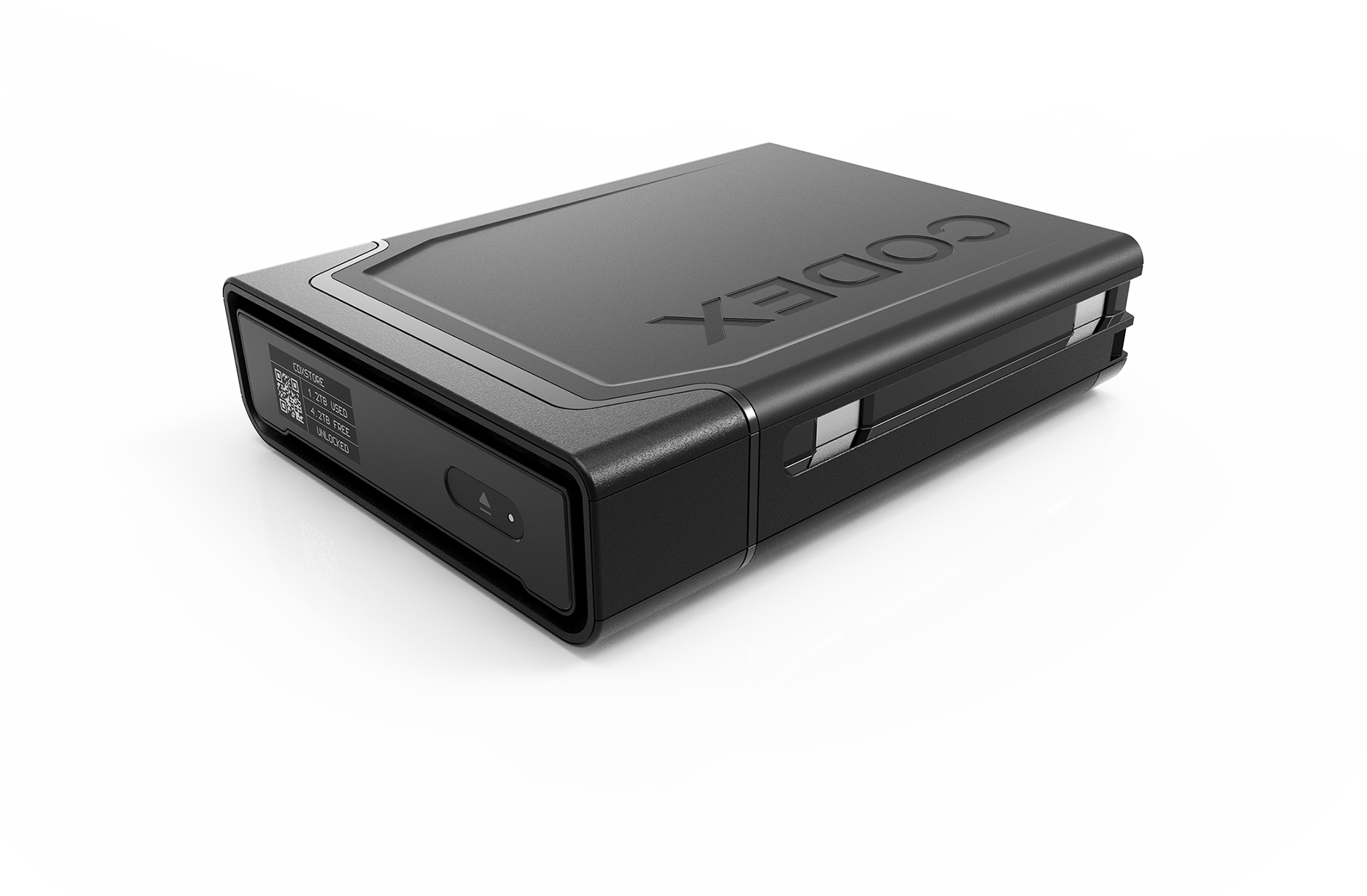

Transfer Drive

The latest in solid-state drive technology, designed for high performance and reliability with direct Thunderbolt 3 and SAS interface options available.

Specification


KEY FEATURES
  • Ideal for transporting data from on-set production to near-set or post, Codex Transfer Drives are available in 8 TB (Solid State) that support high speed cloning from Codex capture drives.

    Insert the Transfer Drive into a Codex Vault or Transfer Drive dock and you can playback media at 2500 MB/sec, enabling real-time viewing of up to 6K original RAW files played back at HD, 2K or 4K resolution to a monitor or projector.

TECHNICAL
Interface SATA 6Gb/s
Capacity 8TB Solid State
Dimensions [W x D x H] 250mm (9.8”) x 212.5mm (8.4”) x 69mm (2.7”)
Weight 1.4kg
Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Power Consumption (Active) 30W max
Transfer Speed Up to 20Gb/s
Insertion/Removal Durability 10,000 actions
Shock Resistance (1/2 sine pulse, 0.5ms) - 1500G
Vibration Resistance (7~800Hz)- 3.08Grms
Warranty 1 year limited warranty
Product Code CDX-37004-1
