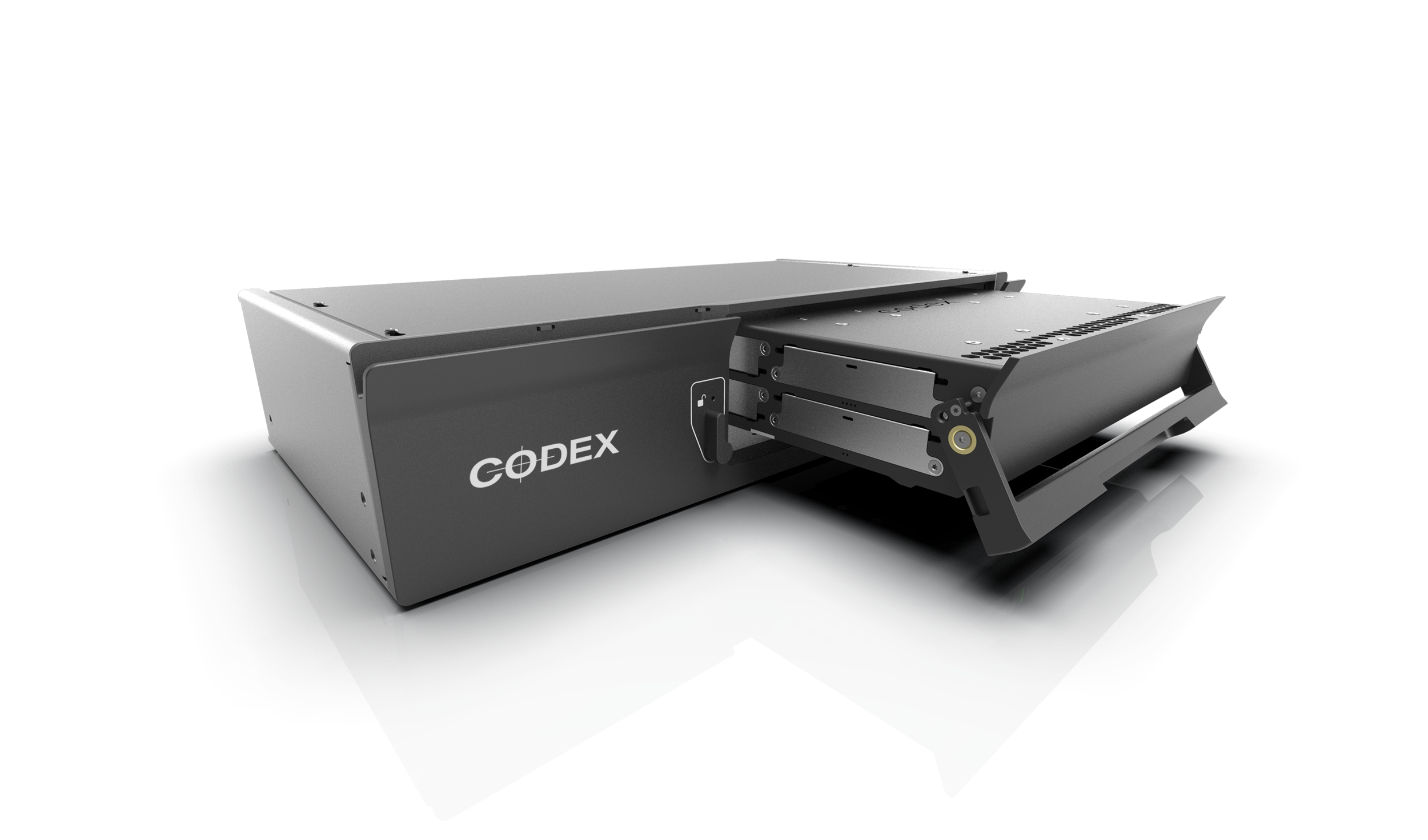

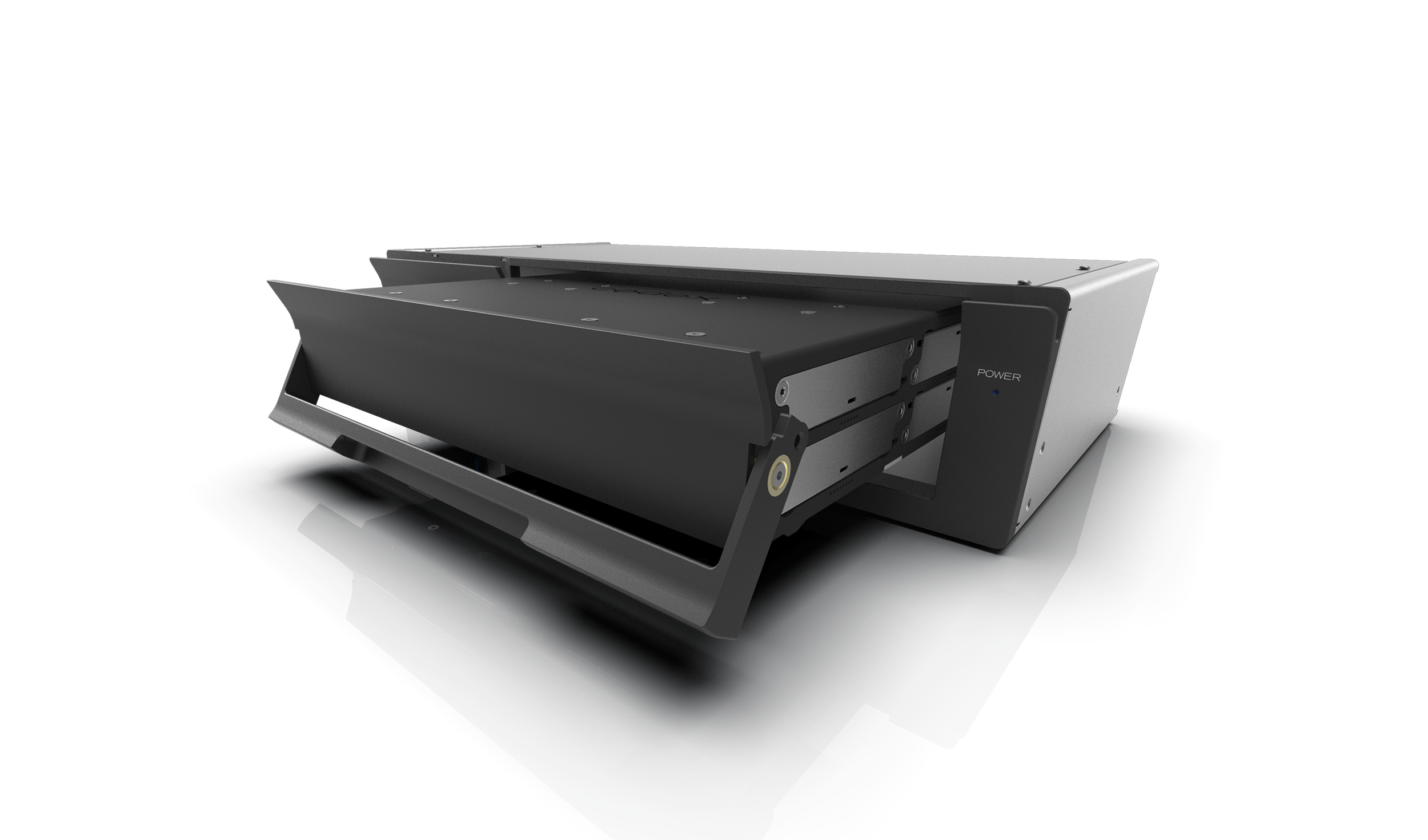

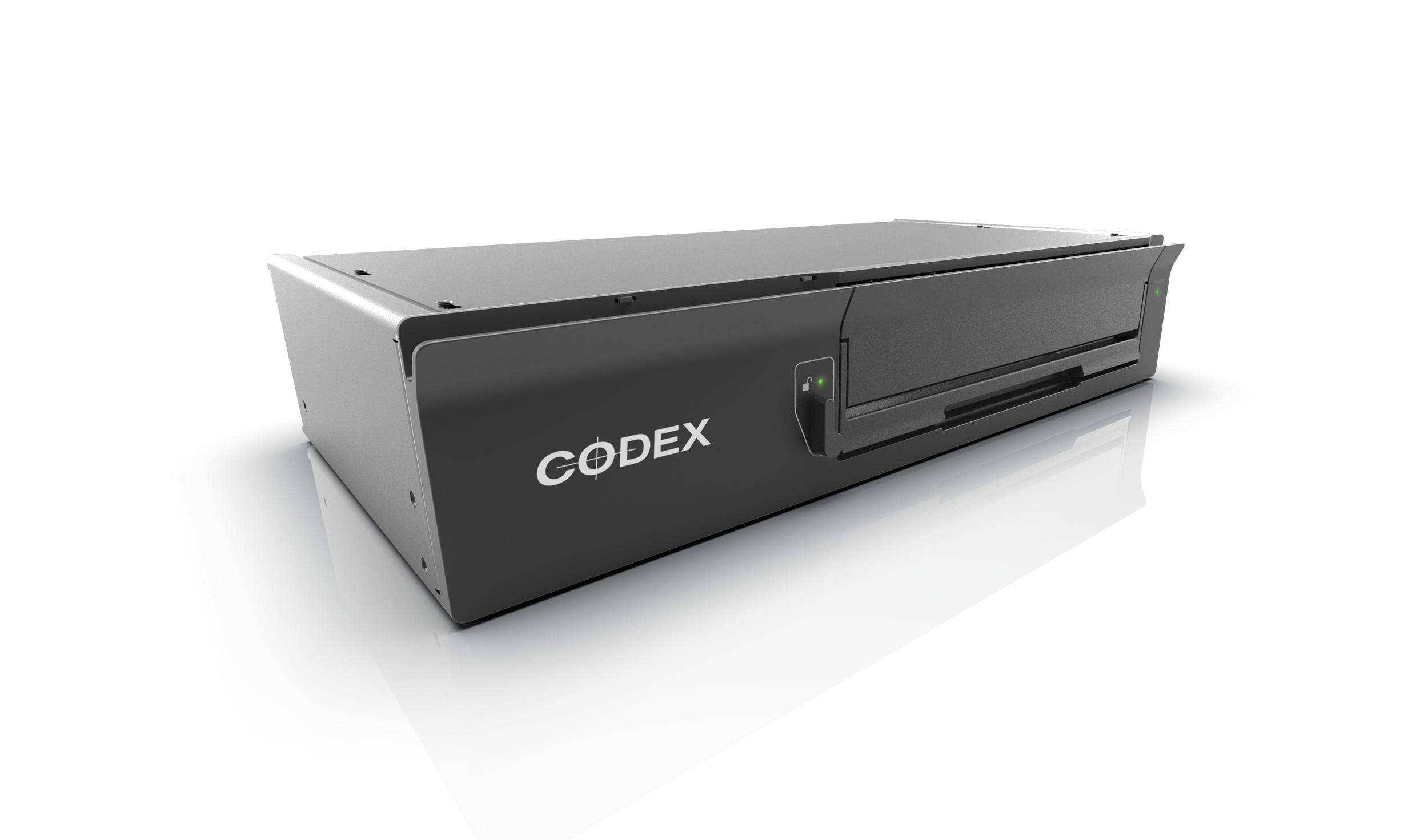

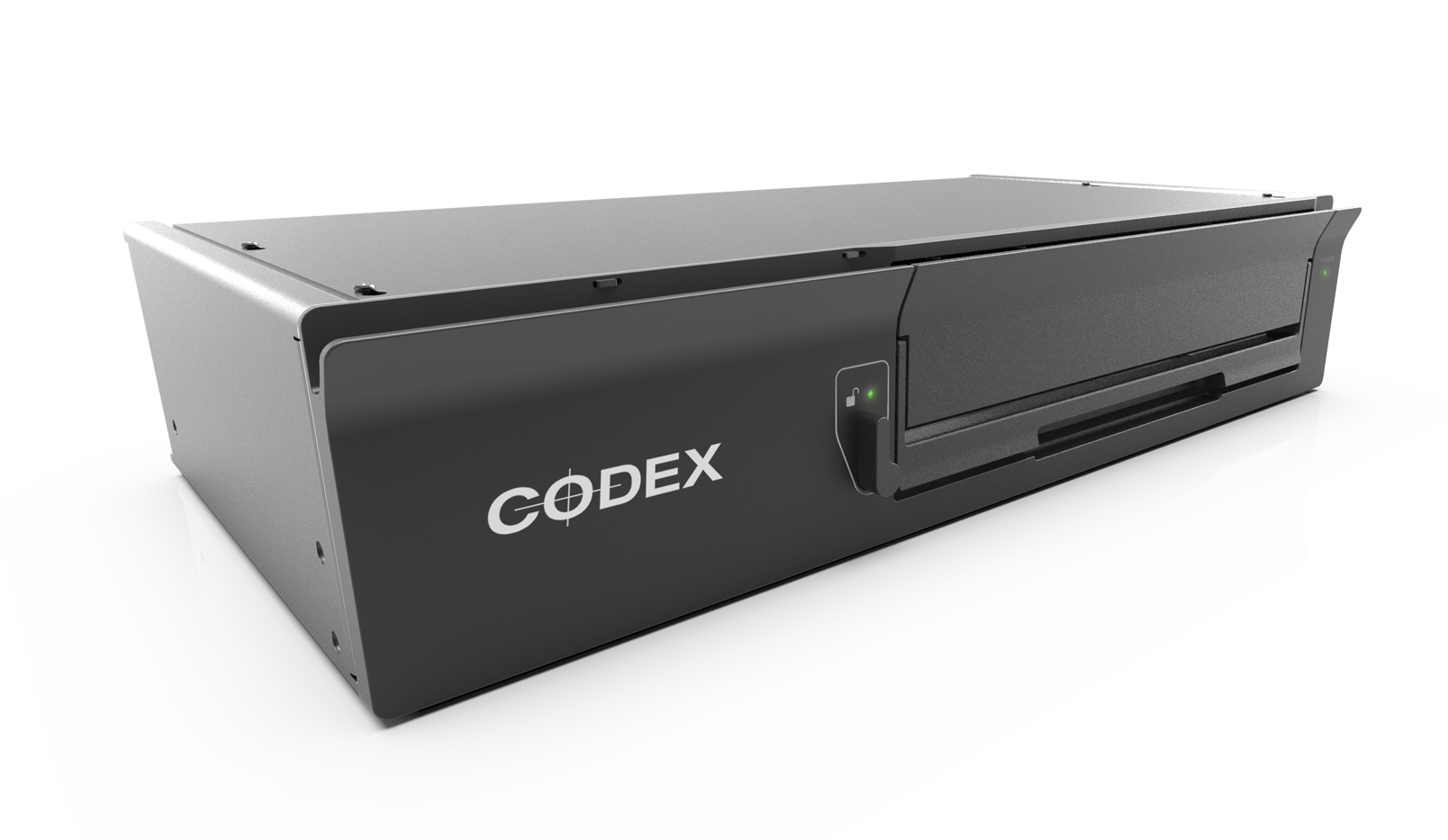

Transfer Drive Dock

The latest in solid-state drive technology, designed for high performance and reliability with direct Thunderbolt 3 and SAS interface options available. Accepts 8 TB (Solid State) Codex Transfer Drives.


Specification


KEY FEATURES
  • Can also be mounted on the Codex Vault platform as an external storage target for archival and generating deliverables for editorial.
  • Insert the Transfer Drive into a Codex Vault and you can playback media at 3500/3000 Mb/s [SAS], enabling real-time viewing of up to 6K original RAW files played back at HD, 2K or 4K resolution to a monitor or projector.
  • Attach the CDX-37004-1 Transfer Drive to your external departments computers for access of deliverables in Editorial, VFX and Marketing.
  • 2RU rack mount
  • SAS interface for Vault XL and TB3 for macOS
  • Read/write 3500/3000 Mb/s [SAS] 2500 Mb/s [TB3]
  • Drive lock and status LED
  • Includes Codex Production Suite Licence
  • Internal PSU
  • 256-bit encryption (XL-Series only)

TECHNICAL
Interface SAS - 12GB/s [CDX-62102-1], TB3 - [CDX-62102-2]
Operating System SAS - Codex OS / TB 3 - macOS X Sierra 10.12 or higher
Dimensions [W x D x H] 482mm [19”] x 508mm [20”] x 2RU
Weight [estimated] 5.8kg [12.8lbs]
Operating Temperature 0°C ~ 40°C [32°F ~ 104°F]
Operating relative humidity to 95% [non-condensing]
Storage humidity to 95% [non-condensing]
Interface speed SAS - Up to 96 Gb/s / TB 3 - Up to 40 Gb/s
Power [Max] 240/120V Integrated Power Supply
Insertion/removable durability 10,000 actions
Warranty 1 year limited warranty
Product Codes CDX-62102-1 [SAS] CDX-62102-2 [TB3]
