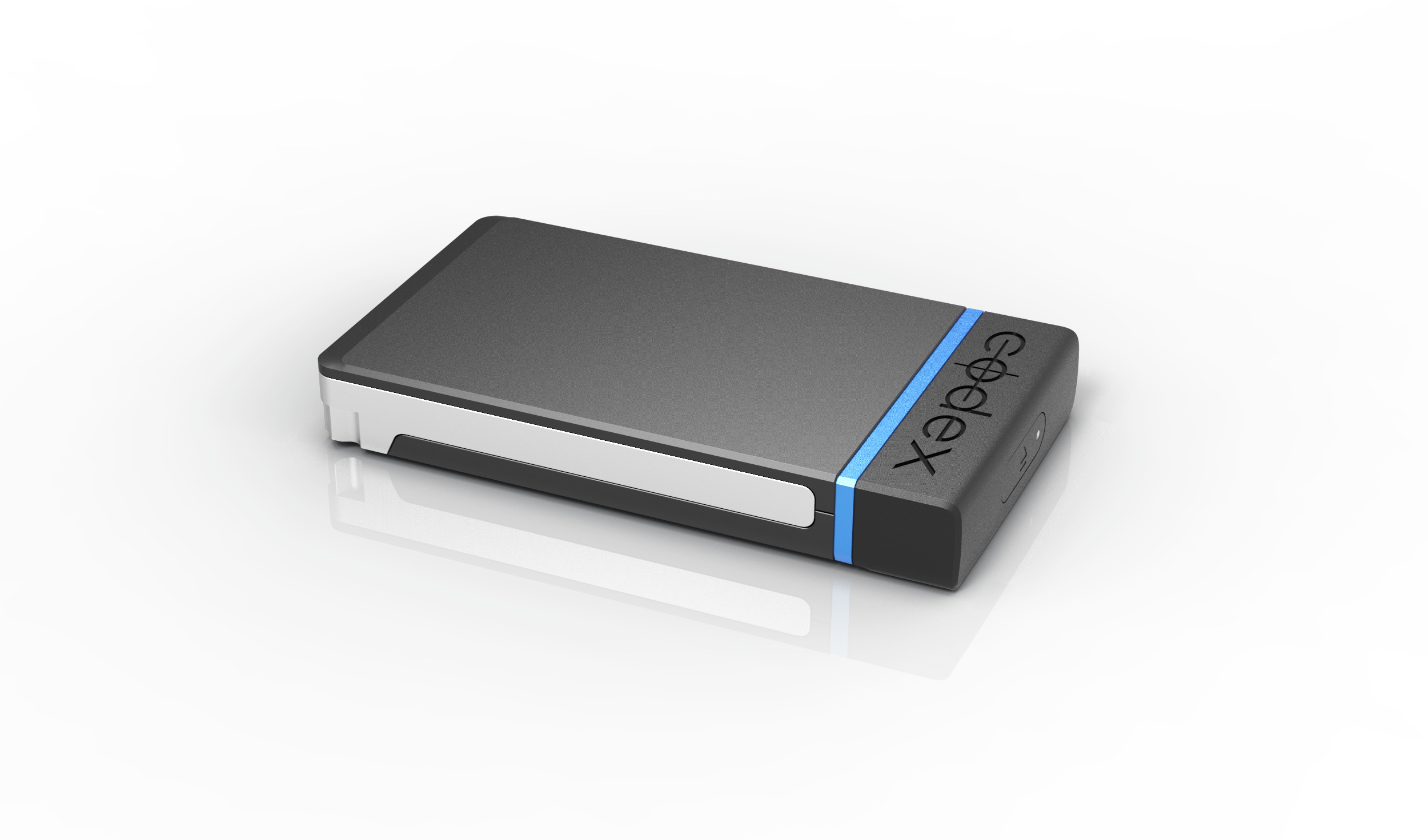

CAPTURE DRIVE SXR

Combines ultra-high performance solid-state storage with production reliability in a compact package.


Specification

Specification


KEY FEATURES
Like its predecessors, the Capture Drive™ SXR is designed to work in the most challenging circumstances and is backed by Codex's world-class support. Utilising the latest PCIe-based flash storage to deliver the fastest solid-state media available for professional applications and feeds seamlessly into Codex's industry-standard workflows via Codex Vault and Capture Drive™ SXR Dock.

Delivering bandwidth of up to 20Gb/s, it is optimised to work with the ARRI ALEXA 65, SXT, and LF.

FAQS


TECHNICAL
InterfacePCIe
CapacityUp to 2 TB
Dimensions61 x 110 x 16.2mm (2.4 x 4.3 x 0.6”)
Weight200g
Operating Temperature0°C ~ 70°C (32°F ~ 158°F)
Storage Temperature-40°C ~ 85°C (-40°F ~ 185°F)
Consumption (at 8Gbps)22W max
Transfer SpeedUp to 20Gb/s
Insertion/Removal Durability10,000 actions
Shock Resistance(1/2 sine pulse, 0.5ms) - 1500G
Vibration Resistance(7~800Hz)- 3.08Grms
Warranty1 year limited warranty
Product CodeCDX-37018 (1 TB) CDX-37020 (2 TB)
